LM Series Side Entry Level Switch
Features
- Australian Made
- Heavy Duty 316 Stainless Steel Switch Housing
- Built in Manual Override
- 15Amp 500V SDPT Switch
- Low Voltage option available with Gold Contacts
- Seal-less Magnetic Drive
- IP67 Weatherproof Rating
- Simple to Install
- Fully Serviceable
Description

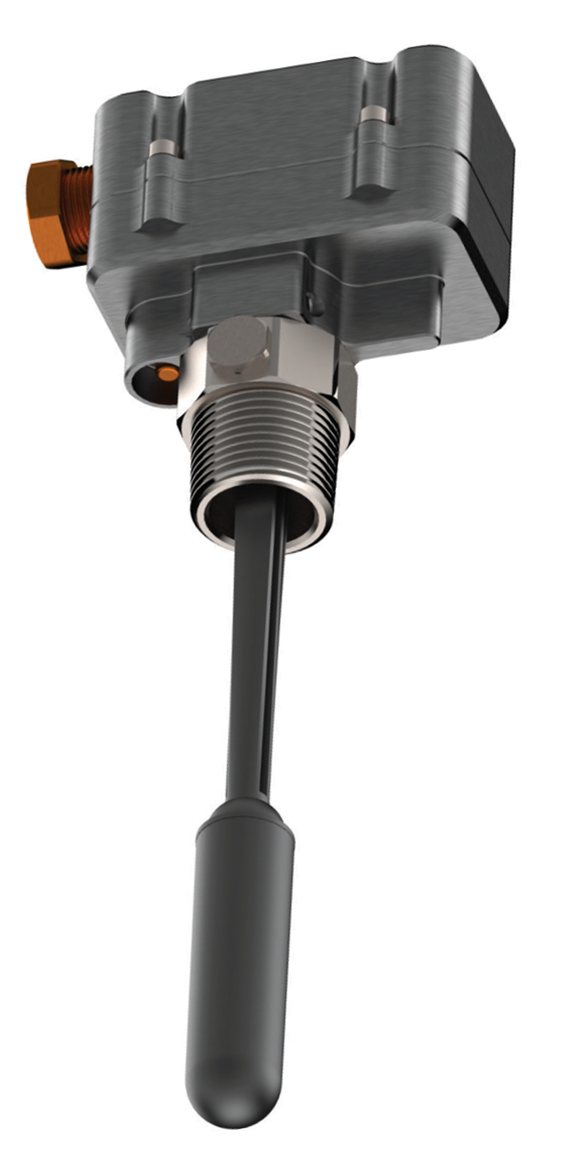

The LM Series is a super tough switch is a reliable and accurate solution to tank level control. The switch housing is made from 316 Stainless Steel and machined aluminum and has a glass-reinforced Polypropylene arm and float. With the LM Series you have the option of a 1″ BSP or 1″ NPT metal process connection.
These switches is supplied with a standard Max. 500V SPDT microswitch for general control circuit use. The LM Series level switches are built tough to give a long reliable service life in the most arduous of applications.
See the data sheet linked below for more information on the available models in the LM Series and the ordering codes.
More Information
- Download LM Series Data Sheet
- Download LM Series Installation Guide
