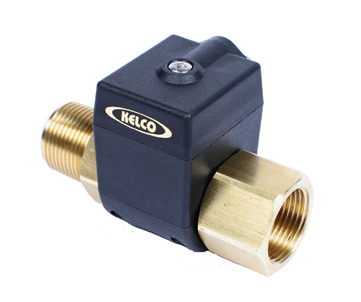

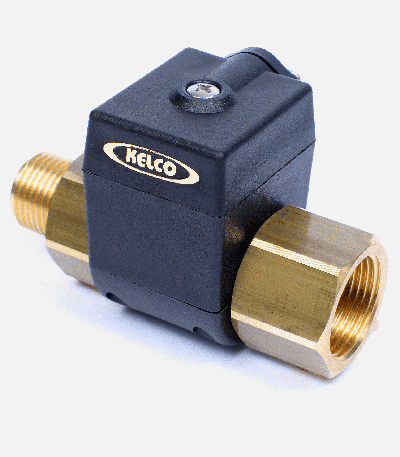

C15 Series Flow Switch


  • Australian made
  • Brass & Polypropylene construction
  • Inlet thread is ½ Inch BSP & outlet thread is ¾ BSP
  • Diesel and oil suited models available
  • Choice of reed switch or solid state switch
  • Low head loss design
  • Fully serviceable
  • Static or Dynamic pressure rating up to 100bars 1470psi
  • Spare parts available
  • Weatherproof
  • Maximum flow rate of 30L/min


The C15 inline flow switches have a compact design, with a magnetically-actuated piston that switches in response to flow. They are ideal for many types of pressure boosting and control applications in both hot and cold liquids up to 90ºC.

For safety shower applications we recommend using our C15-B model with the dry contact reed switch.

See the data sheet linked below for more information on the available models in the C15 Series and the ordering codes.

More Information


For assistance in choosing the correct product for your needs, check out our Product Selection Guide.
