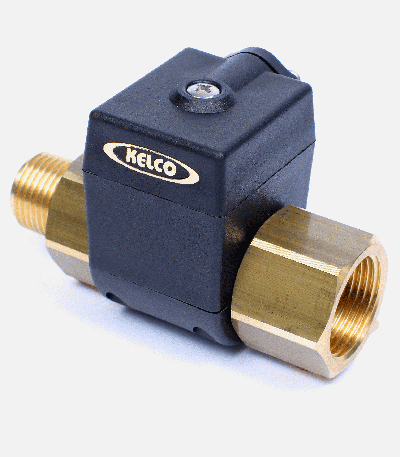

C25 Series Flow Switch


  • Australian made
  • Brass and Polypropylene construction
  • 1 Inch BSP or NPT inlet & outlet thread
  • All position mounting
  • Diesel and oil models available
  • Choice of reed switch or solid state switch
  • Maximum flow rate of 100L/min
  • Static or Dynamic pressure rating up to 100bars 1450psi
  • Very low head loss
  • Weatherproof


The C25 inline flow switches have a compact design, with a magnetically-actuated piston that switches in response to flow. They are ideal for many types of pressure boosting and control applications in both hot and cold liquids up to 90ºC. The C25 flow switches can be supplied with reed switch contacts for relay or PLC control or with a built in 40Amp solid state switch for the direct control of single phase motors up to 3kW 4HP.

For safety shower applications we recommend using our C25-B model with the dry contact reed switch.

See the data sheet linked below for more information on the available models in the C25 Series and the ordering codes.

More Information


For assistance in choosing the correct product for your needs, check out our Product Selection Guide.
